Carburettor Throttle Linkage - Fits S&S Super E/G Models

A Simple solution to allow for cleaner cable routing on S&S Super E Carbs when fitted to V-Twins.

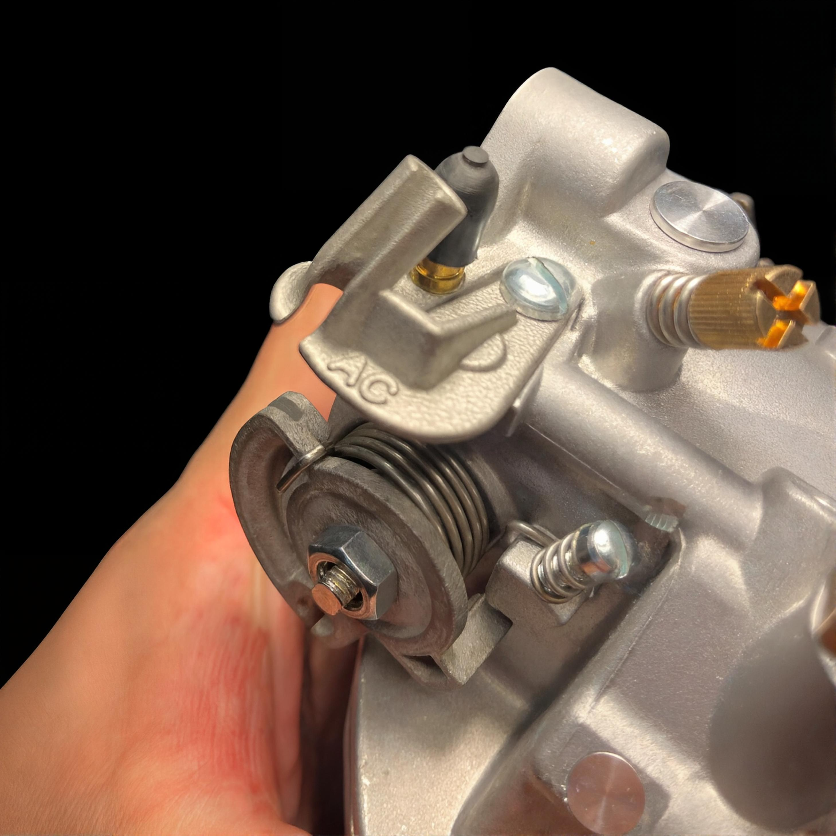

• Angled Cable Sheath Retainer

This cable retainer leans forward and to the right to allow more cable sheath clearance against the rear head, especially with cables coming directly over the front head from internal throttles.

Weight 12g

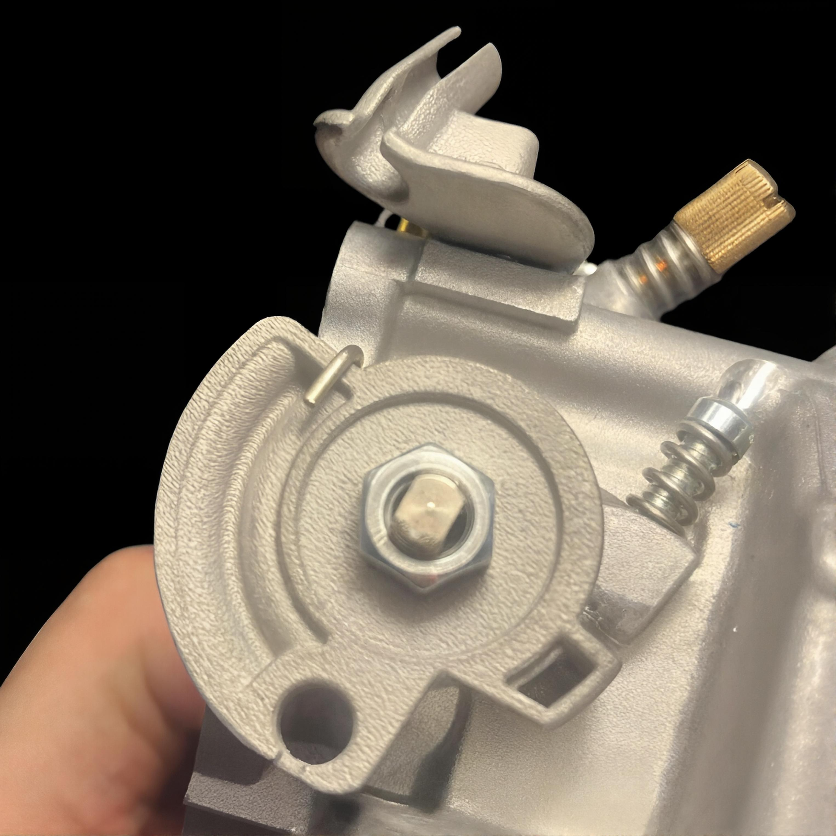

• Pull-Only Throttle Plate

Nothing special here, just a Pull-Only Cable plate with a 4g weight saving over the stock pressed steel plate.

when fitting you may need some very very slight filing of the oval hole to snuggly fit your shaft.  I check them all with a carb here prior to shipment but there are variations in shafts over the years and I prefer them to be snug rather than loose!

All Spring retainers, throttle stop, and Idle adjust still work as one installed standard.

Weight 24g
